The new Leonardo College in Leiden: a school in motion

Text Desiree PenningsPhotography Zenzo Maatschappelijk Vastgoed

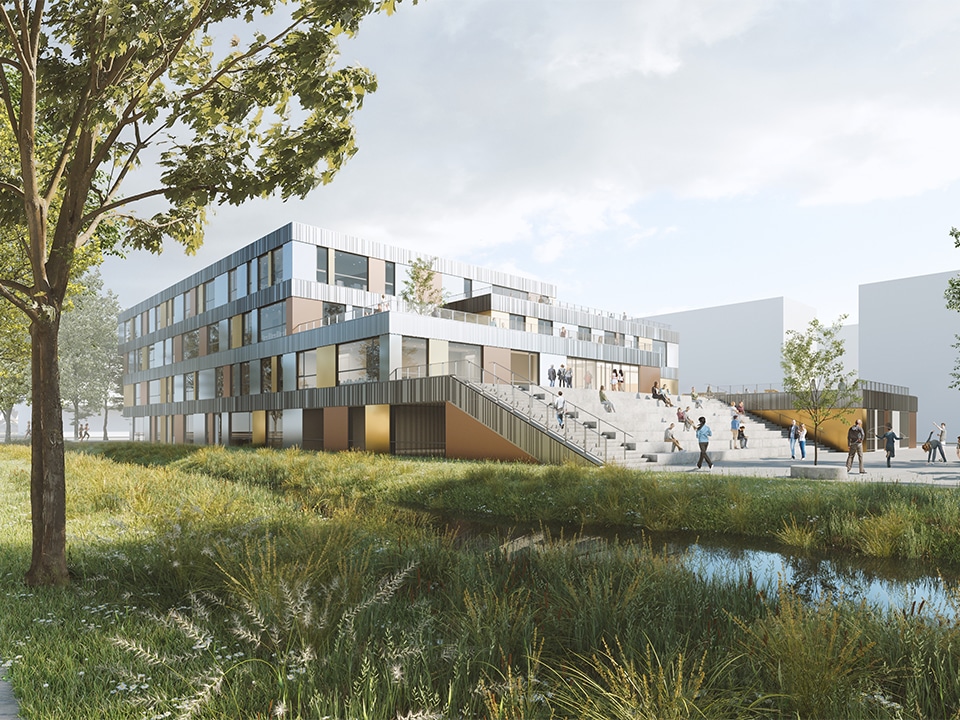

De gevels van het Leonardo College zijn nergens hetzelfde en blijven zo continu in beweging.
De gevels van het Leonardo College zijn nergens hetzelfde en blijven zo continu in beweging.

The new Leonardo College in Leiden is all about movement. The thinking is that pupils who enjoy being active are more likely to enjoy going to school.

Movement is reflected in the school’s overall form, the outdoor space with its multi-purpose sports facilities, and the surroundings, with a high-performance sports centre opposite. As the area is still undergoing extensive development, this was taken into account from the outset.

Zenzo Maatschappelijk Vastgoed and Lithos bouw & ontwikkeling won the tender to develop and build the school. Future users were involved in the process as much as possible, giving them a say in the project. For example, the outdoor area was designed in consultation with the pupils, as was the interior. Irmo Jansen of Zenzo explains: “We organised workshops for this. The result is a welcoming school with fresh colours and greenery in the outdoor area. A multi-purpose sports facility will be built outside, which local residents will also be able to use in future. The school is in an area that is yet to be redeveloped. Housing will be built around it in the next few years.”

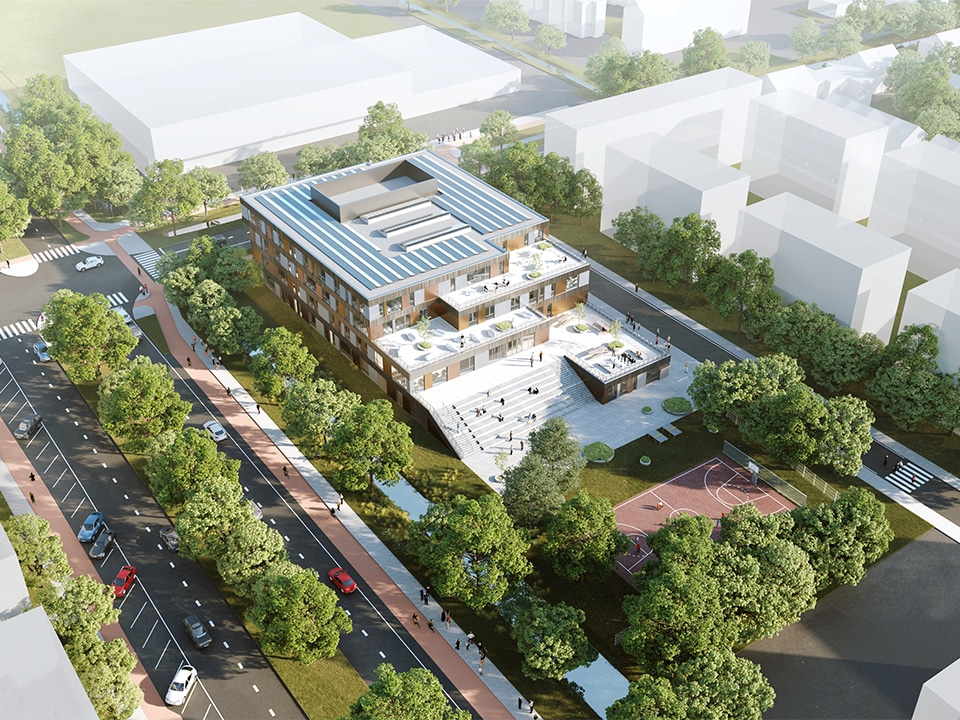

Leonardo College is located in a neighbourhood that is still undergoing extensive development. This was taken into account in the design.

Outdoor classrooms

This is also one of the reasons why the grounds are freely accessible, with no fencing around them. The outdoor space is not limited to the ground floor, however, but also extends into the building itself, Jansen explains. “The plot is relatively small and we had limited space for landscaping. So we created roof terraces on the upper floors, which also serve as outdoor classrooms.”

Energy-neutral school

A modern school like Leonardo College is, of course, being built sustainably. In fact, it is being designed to be energy-neutral. This is achieved with an aquifer thermal energy storage system combined with 380 PV panels on the roof. Together, these generate all the energy needed to run the building services. Jansen says: “Energy demand is reduced by a well-insulated building envelope. The building is then cooled and heated efficiently, and naturally uses LED lighting.”

Frisse Scholen

As well as being sustainable, the new school is also a pleasant place to spend time. The building meets the requirements of Frisse Scholen Class B. “A good educational building needs a healthy indoor climate and good acoustics,” Jansen continues. “We paid a great deal of attention to the installation of suspended ceilings and sound-absorbing materials. The partition walls are also acoustically insulated, so pupils can work in peace and quiet. The client asked for the building to meet the requirements of Frisse Scholen Class B, and we upgraded it to Class A for acoustics and energy.”

Despite the compact plot, plenty of outdoor spaces were created in and around the building.

Maximum visibility

Construction began in July 2020, and the school is expected to be completed in July 2021. A one-year construction period is very short for a building of this kind. Lithos bouw & ontwikkeling achieved this, together with its project partners, by using extensive prefabrication. The school has a steel frame, (precast) floor slabs and timber-frame façade elements. This approach made construction efficient, while also creating an efficient interior layout. An atrium with tiered seating forms the heart of the building. From here, you can see all parts of the school, Jansen explains. “There are no cramped corridors, but clear sightlines throughout the building. Self-study areas for pupils are arranged around the central heart. Once the school is in use, pupils will be able to spend their breaks on the tiered seating. Every space has been carefully considered, with users closely involved in the process.”

Project info

Sustainable façade elements in every size

The timber-frame façade elements and roof edges for Leonardo College were supplied by Prefab Fabriek Culemborg. The company manufactures and installs façades, roofs, floors and complete homes using sustainable timber.

The timber-frame façade elements for Leonardo College cover almost 3,000 m², and Prefab Fabriek supplied them in around 320 sections. Company manager Teun van Laarhoven explains: “It is a complex building, so almost every façade element was different. We developed the design using our own engineering team and the 3D model, to make sure everything would fit.”

Lithos Bouw, the client for this project, is a familiar name to Prefab Fabriek. “We work for them regularly. We found the collaboration and craftsmanship of Lithos’s project team very positive. This meant we were able to deliver everything on time, despite the tight schedule,” says Van Laarhoven.

Alongside façade elements for new builds, Prefab Fabriek also supplies products for the renovation and sustainability upgrades of existing buildings. From window frames and façades to roofs, floors and even complete homes, everything is made in its own factory.

Project info

Fire-resistant load-bearing structure for Leonardo College

BHB Brandpreventie is making Leonardo College in Leiden fire-safe by applying a fire-resistant coating to the main steel load-bearing structure. The work is being carried out for Lithos as the client.

“It is an intumescent fire-resistant coating. In the event of a fire, the heat causes the coating to expand on the steel beams. This insulates the beams against the heat and prevents structural failure. This enables the project to meet the 60-minute requirement,” explains Gerrit Bakker, owner of BHB Brandpreventie. The company is carrying out the work in phases, floor by floor. “Once the sand-cement screeds are complete, we can carry out our work on each floor.”

BHB Brandpreventie has expertise and professional competence in passive fire protection and airtight application. Across the Netherlands, it works in passive fire protection, using fire-tested systems for steel, timber and concrete structures. It also carries out WBDBO fire compartmentation for walls, ceilings and seals, as well as airtight installation to qv;10 standards. All work is carried out in accordance with the requirements of the Building Decree.

Project info

Load-bearing structure offers maximum layout flexibility

SWINN designed the load-bearing structure using hollow-core slabs with integrated beams and concrete-filled steel columns. The selected structural system gives the school maximum flexibility in its layout. The integrated beams create a flat soffit, allowing building services to be routed flexibly, both now and in future. The structural design was, of course, also economically optimised as part of this solution. The integrated design process involved close collaboration with the contractor, with optimisations made at an early stage to achieve a relatively short construction period. During construction, SWINN worked closely with the project partners to coordinate the engineering of the various suppliers and ensure the project proceeded as smoothly as possible.

Project details

Design and construction
Zenzo Maatschappelijk Vastgoed and Lithos bouw & ontwikkeling

Structural engineer
SWINN, Gouda

Façade cladding
Bijlbouw, Alblasserdam

Solar PV installation
DenG Solar, Soest

Fire-resistant coating
BHB Brandpreventie, Barneveld

Timber-frame façade elements
Prefab Fabriek, Culemborg

Construction period
July 2020, July 2021
