Construction projects

Impressive water treatment plant for ARTIS

Text Frederique HutingImage Hellebrekers

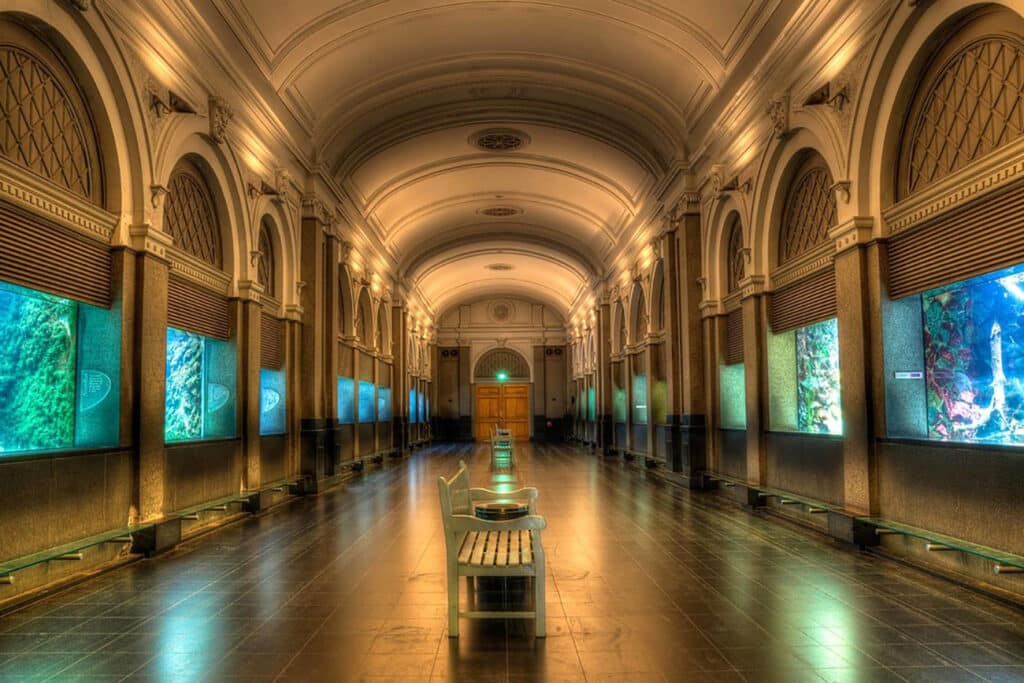

De toonzaal voor de renovatie. De renovatie vindt voornamelijk backstage plaats. Daarom zal deze zaal er over twee jaar nog bijna hetzelfde uitzien.
De toonzaal voor de renovatie. De renovatie vindt voornamelijk backstage plaats. Daarom zal deze zaal er over twee jaar nog bijna hetzelfde uitzien.

Hellebrekers Water & Leisuretechniek’s Oss branch has been working with ARTIS for more than 45 years. The technical services provider knows every detail of the animal enclosures with water features in Amsterdam. So it is no surprise that the company was also involved in the restoration of the ARTIS-Aquarium. Marty van den Heuvel, contract manager at Hellebrekers, has been working with ARTIS on the aquarium’s new water treatment plant since 2017.

Hellebrekers specialises in delivering technical installations for water treatment, climate control and electrical systems. The company installs and maintains water treatment plants, mostly in swimming pools, but also in zoos. “Our partnership with ARTIS began in the early 1970s, when a water treatment plant was needed for the polar bear pool,” says Van den Heuvel. “We have been a trusted partner of the zoo ever since.”

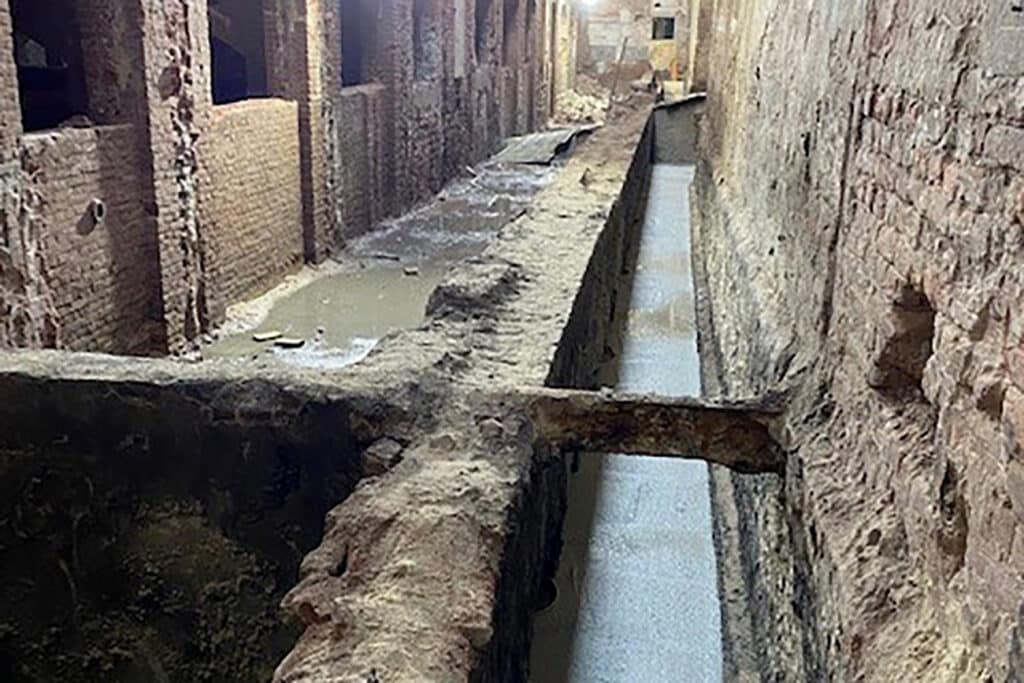

The plant room. Hellebrekers’ technical installations are being built in the channel on the left.

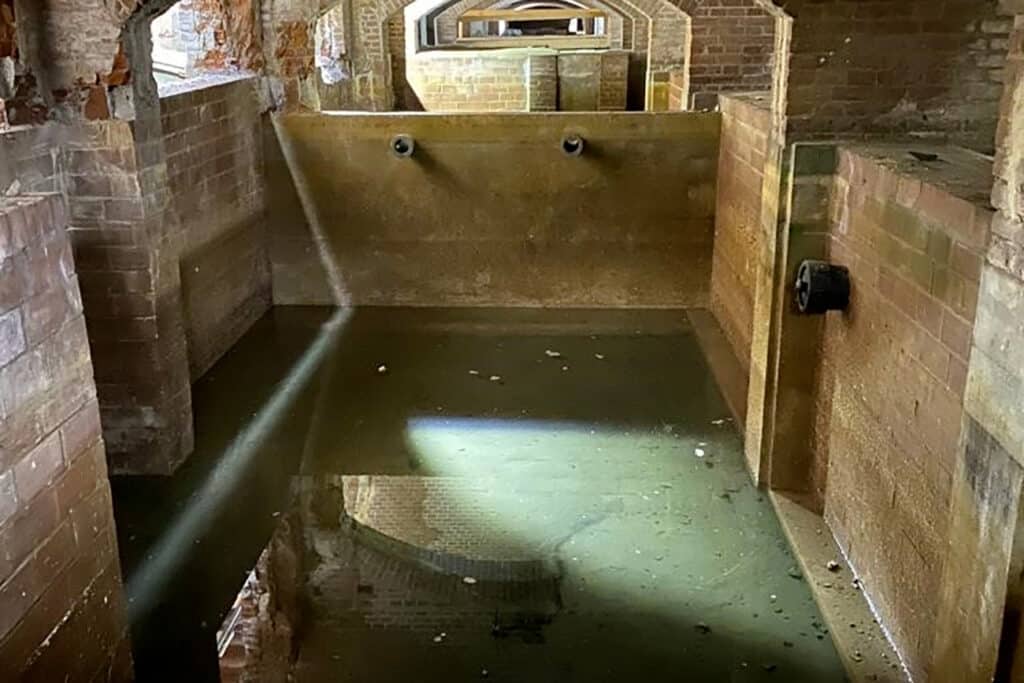

The water reservoirs for the display tanks that visitors can see on the ground floor. The reservoirs have been temporarily drained for the renovation.

Creative solutions

The aquarium, a listed building dating from 1881, has been completely stripped back to its structure, and is being rebuilt with new installations. The building itself is being retained, making this a complex project. “We have to build around the framework and cannot simply knock down a wall,” explains Van den Heuvel. Hellebrekers has the expertise and knowledge to develop creative solutions: “We take the building’s challenges into account and tailor the water treatment plants to fit exactly. This includes installing the pipework around all the vaulted ceilings.”

Water quality is everything

For around two years, ARTIS and Hellebrekers ran a pilot using a fleece filter suitable for seawater. The pilot produced good water quality, enabling Hellebrekers to continue engineering the water treatment systems.

The water first passes through a fleece filter, then flows into a settling tank. From there, it moves on to the protein skimmer, followed by a biofilter. A seawater-resistant circulation pump then pumps the water back up from this compartment. Before reaching the tanks, the water passes through a plastic UV unit for disinfection and a graphite heat exchanger for heating or cooling. This allows visitors to watch the fish swimming in crystal-clear water.

A remarkable project

“I’ve been in this profession for more than 20 years, and I have to say, this is a very special project, as well as a challenging one,” says Van den Heuvel. “Fortunately, these are exactly the kinds of projects that make our work so enjoyable!”

Have a business enquiry for Hellebrekers? Get in touch

Who worked on the ARTIS-Aquarium

  1. main contractor for the restorationSalverda BouwMentioned in A successful battle against salt
  2. mechanical engineering consultantHalmosMentioned in Smart building services for the historic ARTIS Aquarium
  3. new water treatment plantHellebrekers Water & LeisuretechniekMentioned in A milestone reached: ARTIS-Aquarium is almost ready
  4. complete electrical installationSDR ElektrotechniekMentioned in Bespoke electrical engineering for a unique underwater world
  5. steel windows and doorsJonkers Stalen KozijnenMentioned in Restoration of ARTIS Aquarium combines historic preservation with modern technology
  6. over 2,000 square metres of terrazzo flooringEterno Minerals of the WorldMentioned in New terrazzo floor for ARTIS-Aquarium
  7. Mechanical installationsBremanMentioned in A fantastic project
  8. water treatmentHellebrekersMentioned in A fantastic project
  9. ClientARTISMentioned in A fantastic project
  10. Structural engineerDuyts BouwconstructiesMentioned in A fantastic project
  11. Electrical installationsSDRMentioned in A fantastic project
  12. demolition workKwakkelMentioned in The ARTIS Aquarium: fully sustainable and ready for the future
  13. building contractorSalverdaMentioned in A new lease of life for the listed ARTIS-Aquarium
  14. architectOTH ArchitectenMentioned in ARTIS-Aquarium: restoration and sustainability upgrade of a wonder of the world
