Modular construction

ABN-AMRO office in Amsterdam set to become one of the most sustainable offices in the Netherlands

Text Lieke BousemaImage ABN AMRO Bank

Vanaf de zomer van 2027 kunnen medewerkers én bezoekers neerstrijken in een uiterst duurzaam gebouw, dat aan de allerhoogste labeleisen voldoet. (Beeld: Heleen van Drie-de Pagter)
Vanaf de zomer van 2027 kunnen medewerkers én bezoekers neerstrijken in een uiterst duurzaam gebouw, dat aan de allerhoogste labeleisen voldoet. (Beeld: Heleen van Drie-de Pagter)

Focus on circularity, energy efficiency and employee wellbeing

A unique conversion is under way at Foppingadreef in Amsterdam-Zuidoost, where ABN AMRO’s office is being renovated, expanded and reconfigured using circular principles to create a modern, Paris Proof workplace and meeting place. From summer 2027, employees and visitors will be able to settle into an exceptionally sustainable building that meets the highest certification requirements. Thanks to smart design choices, the building will be twice as sustainable as required by the Paris Climate Agreement, while energy consumption will be almost halved compared with the previous situation. The remaining energy demand will also be met as sustainably as possible, enabling the ABN AMRO office to meet BENG standards and qualify for BREEAM Outstanding certification.

The development is being led by Edge. BAM Bouw en Techniek is responsible for construction, while BBC (Bosman BAM Combinatie) is responsible for all building services.

The redevelopment officially got under way in September 2023, but the first plans had been drawn up well before then. “We have been involved in this project since 2019, working to align the design principles, spatial expression, building programme and required structural and building services modifications with the ambitious goals of ABN AMRO and ourselves,” says Mayada Shaaban, Director Projects at Edge. “ABN AMRO helps its clients become more sustainable and leads by example. When it opens in 2027, Foppingadreef will be fully Paris Proof, and ABN AMRO has chosen redevelopment and the conscious use of materials over new build. The building will foster a pleasant, healthy working and social environment, as well as interaction between departments and employees. It will also serve an important social function, with a public atrium and restaurant.”

A showcase for sustainability

The redevelopment was prompted by ABN AMRO’s Technical Refreshment Program (TRP), which set out to upgrade the building services while retaining the building, Shaaban explains. “By the time we joined the discussions, new thinking about working from home, sustainability and the bank’s role towards its employees and society had been added to the brief. The idea soon emerged of turning this site into a showcase for sustainability, circularity and innovation, with an increase in floor area adding even greater impact.” The team also sought to work with the municipality, which wants to make Zuidoost more vibrant. The presence of large companies in the area contributes to this goal.

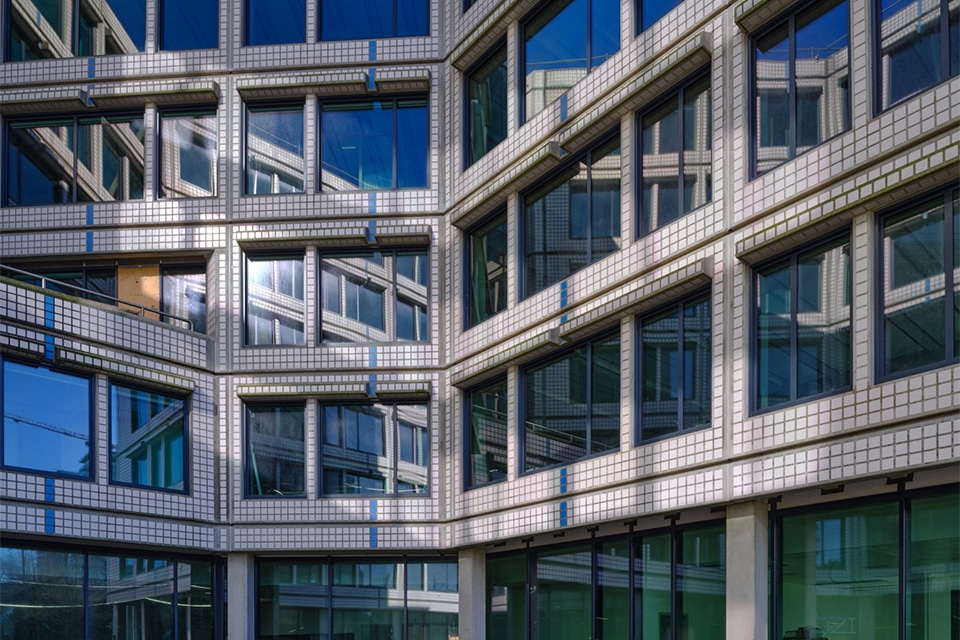

The thermal envelope and airtightness of the existing building have been upgraded to current standards, and all window frames and glazing have been replaced. (Image: Hans Wilschut)

Three key priorities

“To maximise sustainability, we have divided our ambition into three key priorities,” says Daphne Lautenbach, Real Estate Development Manager at ABN AMRO. “First, we want to save as much energy as possible, in line with the Paris Proof and BENG criteria. Sustainability is also about the wellbeing of employees and visitors, so, for example, we are placing a strong emphasis on views and daylight. Finally, circularity is a key priority. The building incorporates many reused elements, including climate ceilings and raised access floors.”

Distinctive structure optimised

ABN AMRO’s building at Foppingadreef dates from the 1980s and was designed by Broekbakema Architecten. “Together with the architect, we analysed and optimised the building’s distinctive structure,” says Shaaban.

“The office was originally designed according to structuralist principles. It consists of a main building with three cores and Y-shaped office wings, some of which are being extended upwards as part of the redevelopment. Three new Y-shaped elements are also being added. This follows the human scale and modular layout characteristic of structuralism, as well as the distinctive form of Broekbakema Architecten’s design.” Lautenbach considers it remarkable that both the defining structure and the architecture are being retained during the redevelopment. She cites the façade cladding of small white tiles as an example. “By continuing these tiles harmoniously across the upward extensions, the building looks as though it has always stood in this form.”

Atria as connecting elements

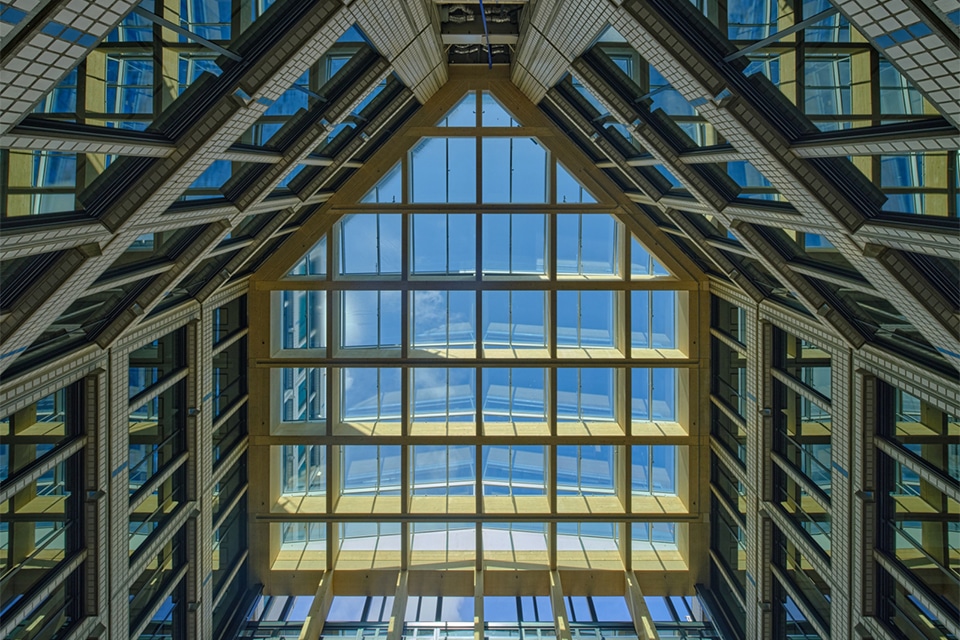

In the previous layout, there was no connecting element. The new design addresses this by adding nine light-filled, green atria in the open spaces, linking the building from end to end and giving employees places to meet. “This strategic infill improves the balance between office and façade areas and reduces the building’s thermal envelope, bringing its environmental and social impact into harmony,” says Ron van der Horst, Project Director at BAM Bouw en Techniek. “Lightweight steel and glass roofs also improve the indoor climate without a major material impact.” Lautenbach adds: “The atria provide better sightlines and orientation, and bring more life to the building. One striking feature is the large spiral staircase, which encourages employees to move around and helps create a healthier, more active working environment.”

A better balance

When it was completed in 1988, the ABN AMRO office was already notably energy efficient, thanks to its robust structure, excellent thermal envelope for the time, and aluminium frames with double glazing. There was still room for improvement, however, says Van der Horst. “The thermal envelope and airtightness of the existing building have been upgraded to current standards, and all window frames and glazing have been replaced. We have also used a high-performance façade for the new floors. Combined with energy-efficient systems such as ATES and heat pumps, this will significantly reduce the ABN AMRO office’s energy demand. The remaining demand will be met as sustainably as possible, thanks to 10,500 m2 of solar panels on the roof and façades. This will help us meet the project’s BREEAM, BENG and Paris Proof ambitions.”

Paris Proof

To comply with the Paris Climate Agreement, the WEii methodology sets a 2050 limit of 70 kWh/m2/year for the energy consumption of each office building. Once the redevelopment of the ABN AMRO office is complete, consumption will be about half that, says Lautenbach. “That will make our building twice as sustainable as the agreement requires, 23 years ahead of the Paris deadline and three years ahead of our own targets.” Achieving this ambition required a close look at the building services, says Rick van Haren, Project Director at BAM Bouw en Techniek and at the building services consortium BBC (Bosman BAM Combinatie). “In our view, circularity starts with a realistic assessment. That was also the case with the ABN AMRO project, where many systems proved technically outdated or insufficiently energy efficient, and/or were no longer covered by a warranty. Combined with ABN AMRO’s desire for maximum flexibility of use, this led to the decision to replace these systems completely.”

In the new layout, ABN AMRO will have a modular, logically organised building services system with separate control zones, making it easy to create new layouts in future. “This makes the system highly circular in the long term,” says Van Haren. “Because the zones can be controlled individually, an optimal working environment is assured, both in terms of climate and lighting, with carefully selected operating ranges keeping energy consumption in check. Thanks to a highly sophisticated building management system with an energy dashboard, ABN AMRO will be able to see exactly how much energy the climate control and electrical systems use, and where energy may be lost, enabling consumption to be continually optimised.”

From Excellent to Outstanding

“During the project, ABN AMRO’s BREEAM target was raised from Excellent to Outstanding. We have taken advantage of every readily available opportunity to improve performance,” says Van Haren. “We set an ambitious BENG target, calculating heating, cooling, ventilation and lighting in detail. For the heating system, the starting point was ‘zero exceedance’. We also matched ventilation precisely to the number of people in each space and carefully determined the positioning of the air supply grilles and CO2 sensors. The building will have comfort class A climate ceilings with heat control, as well as LED lighting. Occupancy and daylight sensors will ensure that lights are never left on unnecessarily. Each toilet block will also have its own shut-off valve in the water system, linked to the lighting system, preventing water wastage.” BBC also earned additional innovation credits by equipping the rainwater storage tanks with a weather station for predictive rainwater management. “Combined with extensive emergency power, data and security systems, this brings all of BBC’s areas of expertise into play.”

A dashboard for sustainability

As in any project, new insights continue to emerge at Foppingadreef. “Every change can have potential implications for our sustainability ambitions,” says Van Haren. “That is why every change is assessed against our sustainability dashboard, with BENG, BREEAM and Paris Proof as the main parameters.” The dashboard also provides the basis for monthly partner meetings, where the feasibility of all the sustainability pillars is reviewed. “This means we can make adjustments in good time, for example by adding extra PV panels.” The dashboard will also be submitted to the client as supporting evidence.

Reuse as a starting point

“As much of the building’s existing concrete structure as possible will be retained during the redevelopment,” Shaaban emphasises. “The upward extension uses a timber primary structure, so there was no need to reinforce the existing structure. This also helped us keep our carbon footprint as low as possible. Many materials salvaged from the building have been stored temporarily for reuse, either in the ABN AMRO office or in other buildings or applications.” Examples of reused elements in the building include raised access floors, internal walls, window sills and aluminium window frames, says Van der Horst. “Some of the climate ceilings have also been upgraded and reused as part of the building services system. Other climate ceilings have been given a new lease of life as acoustic features in the atria, while old air ducts and components from the pneumatic tube system add a distinctive finishing touch to the pantries.” Various salvaged materials have also been reused in the Rijksvastgoedbedrijf’s circular Kantoor vol Afval (KaVa) project.

Where new materials are being added, the project has opted wherever possible for sustainable, circular and bio-based materials with a low environmental impact. “This applies from the primary structure right through to the floor finishes,” says Van der Horst. “Combined with efficient construction logistics, just-in-time deliveries, the use of a construction hub and the choice to use as much electric equipment as possible, this will keep the carbon impact of the redevelopment and expansion as low as possible.”

Tight schedule

The ABN AMRO office will be handed over as a shell in February 2027, after which ABN AMRO will fit it out in-house. “We hope to move into the building in summer 2027,” says Lautenbach. “If we meet this tight schedule and achieve all our ambitions, and our colleagues are wowed by their new workplace, this conversion will have been more than successful.”
