Modular construction

Five elements, one campus

Tekst Roel van GilsBeeld MVSA, WAX Architectural Visualizations

Gebouw Water krijgt een gevel van witte en zilvergrijze reflecterende gevelpanelen die het licht vangen zoals water dat doet.
Gebouw Water krijgt een gevel van witte en zilvergrijze reflecterende gevelpanelen die het licht vangen zoals water dat doet.

The final phase of the large-scale Park 20|20 development is currently taking shape in Hoofddorp. The campus is the last piece of the puzzle and comprises five office buildings designed by MVSA as a cohesive ensemble, each with its own identity. The inspiration for this distinctive concept comes from the Chinese philosophy of Feng Shui and the five natural elements: water, wood, earth, metal and fire. Building Water is now under construction.

“Each building is associated with one of the five elements, which we translate into the materials, colours and appearance”, says Mark Ohm, project coordinator at MSVA Architects. “Building Water, for example, is characterised by white and silver-grey reflective façade panels that catch the light in the same way as water. On the square-facing side, the building will have a stepped terrace that evokes a waterfall. The other buildings will feature a fiery red or earthy hue, a warm wood colour or a more metallic appearance, in keeping with their respective elements.”

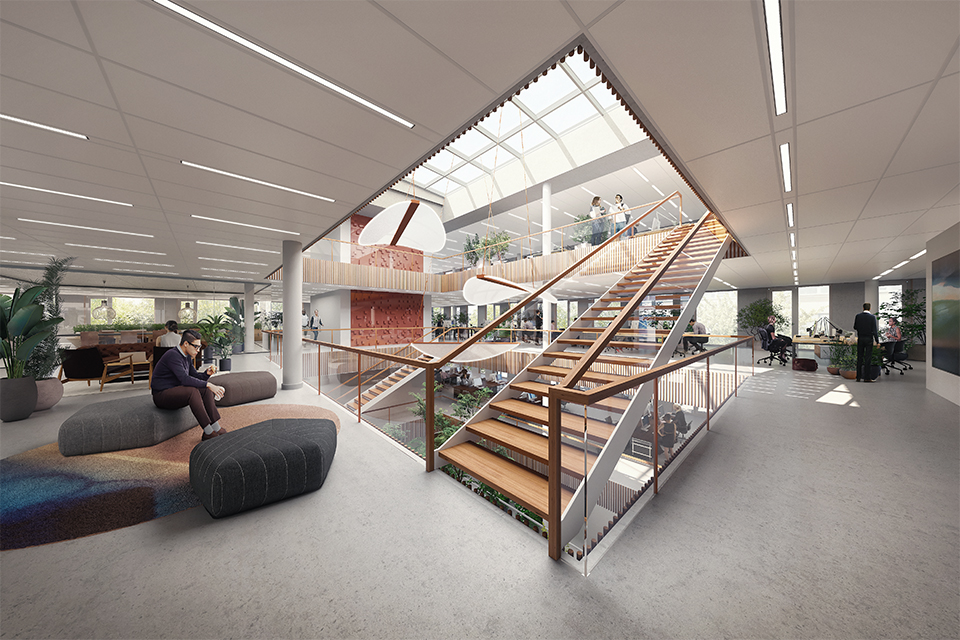

A large atrium forms the central heart of Building Water. (Image: WAX Architectural Visualizations)

PV panels as an architectural feature

Despite their differences, the buildings form a clear unified whole, according to Ohm. “This is achieved through strong horizontal lines across all the façades”, he says. “These horizontal lines visually connect the volumes and reinforce a sense of movement and cohesion. On the south and west façades of Building Water, the floor edges project outwards like horizontal fins, creating canopies. These projections not only provide solar shading, but are also used to integrate PV panels. Solar panels are even integrated into the atrium roof glazing. Together with the main roof and the projecting elements, this makes use of almost every available surface to generate sustainable energy.”

BREEAM Outstanding

Sustainability therefore plays a central role in the development. The aim is for the entire area to achieve BREEAM Outstanding certification. “The building services are housed inside the buildings.

There are no air-handling units on the roof, partly because of height restrictions due to the proximity of Schiphol”, Ohm explains. “Building Water has five storeys, with the ground floor raised slightly (+0.5 metres) to serve as a representative showroom for the occupant. Below it is a semi-basement car park, which is being built in phases beneath all five buildings. The park itself is raised slightly above ground level, forming one large pedestrian zone.”

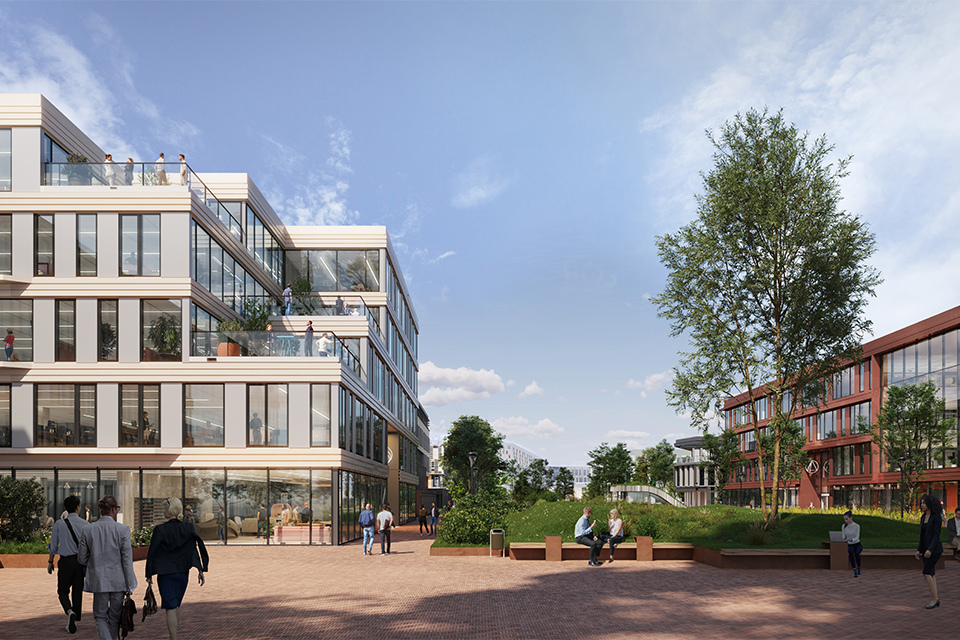

On the square-facing side, the building will have a stepped terrace that evokes a waterfall.

Design for disassembly

The campus is positioned so that the green central zone opens out onto a square enclosed by the five buildings. “This square is the heart of the area: a meeting place with terraces and entrances on this side”, says Ohm. “On the square-facing side of Building Water, there are green terraces on every floor, giving users direct contact with the park landscape and views over the square from every level. The buildings have also been designed for disassembly. The primary structure, for example, consists of steel with hollow-core slabs and no structural topping, while precast concrete cores provide stability.”

Building Water is currently under construction. Building Fire is ready for the next phase (DO), while the other three buildings are still at the design stage. MVSA will remain involved in aesthetic supervision to safeguard the quality and coherence of this distinctive campus concept.
