Specialist foundation work in the city

Text Suzanne van GaaleImage Franki Grondtechnieken

Bij het monumentale pand De Botanist moesten de palen trillingsvrij worden aangebracht én door een bestaande fundering heen worden geboord.
Bij het monumentale pand De Botanist moesten de palen trillingsvrij worden aangebracht én door een bestaande fundering heen worden geboord.

Working within tight limits

Urban construction sites can pose quite a challenge when it comes to foundation techniques. Limited space, existing buildings, listed properties and strict requirements on vibration and noise call for bespoke solutions and specialist expertise. It is precisely in these environments that Franki Grondtechnieken demonstrates its strengths: specialist foundation techniques that go beyond standard pile driving.

At the dike reinforcement project in Tiel, for example, Frank Grondtechnieken used an unusual technique. A sheet pile wall had to be installed through an existing reinforced-concrete culvert, something that could not be done using conventional techniques. According to Jan-Wim Verhoeff, director of Franki Grondtechnieken, the solution was to use overlapping bored piles. “By drilling several holes next to each other, we effectively created a slot through the concrete structure. This slot was then filled with soil, after which the sheet pile wall could be installed.”

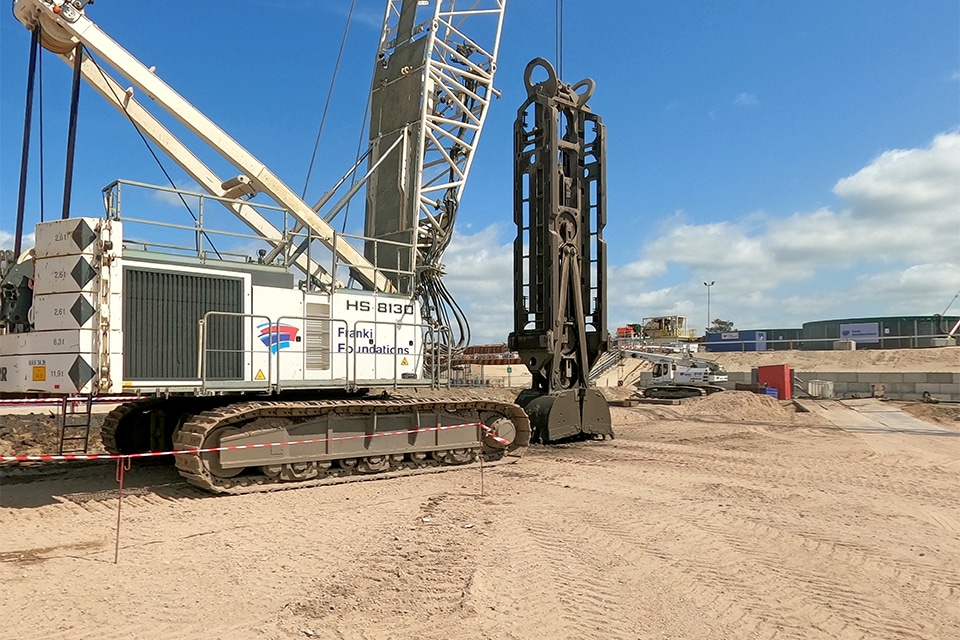

Construction of the complete excavation pit for the new nuclear reactor in Petten.

Listed building

Another good example is the work near the listed building De Botanist in the centre of Breda. On a site measuring just a few square metres, Franki installed a pile wall using bored piles with a diameter of 80 centimetres. Verhoeff says: “The challenge was not just the limited space, but above all the conditions below ground. The piles had to be installed without vibration and drilled through an existing foundation. But the equipment and technique were such that even hard layers or rocky structures presented no obstacle.”

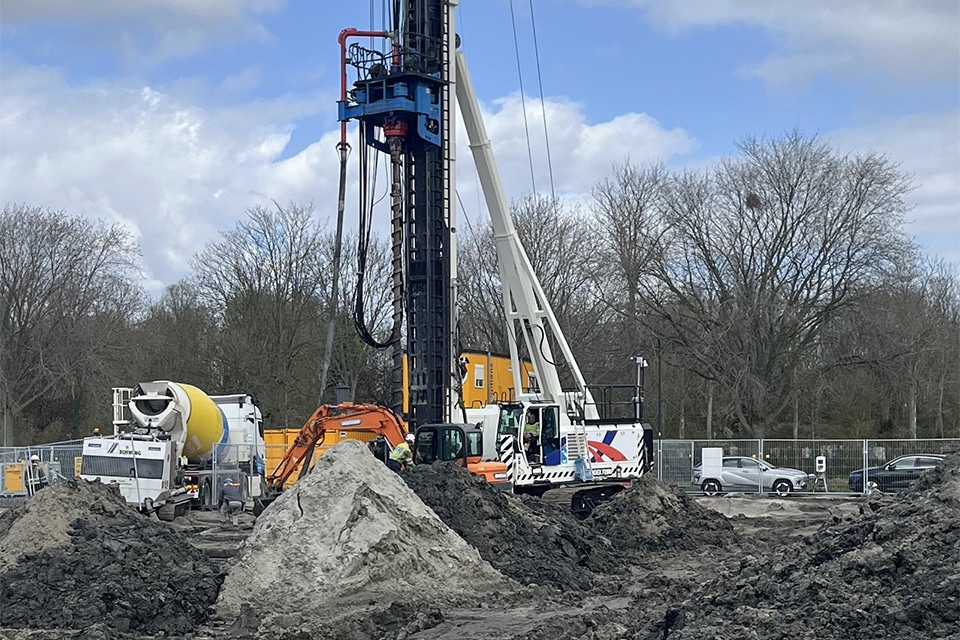

Although the focus is often on complex, specialist projects, Franki also works on more conventional construction projects. The company is currently involved in a housing development in Tholen, Zeeland.

International expertise, applied locally

Franki Grondtechnieken is part of BESIX Group and operates within the Franki Foundations network, which has branches in countries including Belgium and France. Specialist foundation techniques are often the norm in these countries. This international collaboration offers significant benefits. For example, the company can draw on its own engineering department in Belgium, which helps develop smart, viable solutions at an early stage. Verhoeff says: “This is a significant added value. With such a wide range of techniques at our disposal, we can offer solutions that are often a better fit and lead to more efficient and often safer construction methods.”

Collaboration as the key to success

Verhoeff stresses that collaboration is becoming increasingly important. Complex projects involve working with a range of parties, each bringing its own expertise. “By combining our strengths, each company can do what it does best. This not only improves the quality of the work, but also makes it possible to deliver large, technically challenging projects successfully.” Verhoeff also sees Franki Grondtechnieken’s role shifting increasingly from contractor to full construction partner. “Rather than carrying out only the foundation work, we take responsibility for delivering the entire excavation pit.” The construction of the complete excavation pit for the new nuclear reactor in Petten is one example. “We took on full coordination of the excavation pit, including the diaphragm walls, anchors, concrete work, pile foundation, earthworks, underwater concrete and structural floor. We were able to do this thanks to close collaboration with BESIX Nederland. This integrated approach makes it possible to manage particularly complex projects more effectively and tailor them to their surroundings.”
