Postjesweg residential towers rise rapidly

Text Henk GeistImage Van Wijnen

De gevelelementen werden just-in-time aangeleverd en meteen geplaatst.
De gevelelementen werden just-in-time aangeleverd en meteen geplaatst.

Office building makes way for 221 apartments

This is a new-build project, which first required the demolition of an existing office building. The building had been owned for many years by family business Maarsen Groep, which initiated the redevelopment. Following completion, the family business will retain the 67 rental homes in Fortitudo in its own investment portfolio. Caritas, the tallest tower at 19 storeys, has been sold to Invesco Real Estate. Both buildings will contain a mix of one- and two-bedroom apartments with living areas of between 40 and 60 m². The residential towers, named after 2 of the 7 virtues, form part of the transformation of the A10 Ring Zone and Overtoomse Veld.

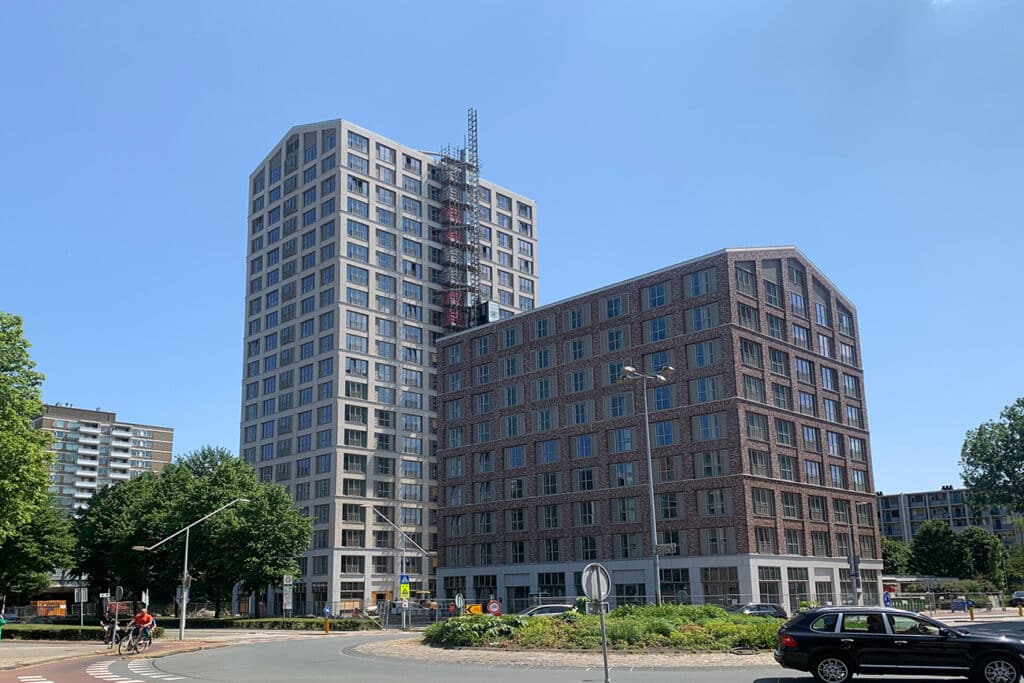

The towers are rising on the site of an outdated office building.

Pitched roofs

The complex, with its distinctive pitched roofs, was designed by Geurst & Schulze Architecten. The roofs create coherence across the ensemble and also reference the post-war architecture of the Western Garden Cities. Maarsen Groep and Van Wijnen developed the project as a construction team from mid-2019, and Van Wijnen will deliver the buildings on a turnkey basis. “The residential towers were developed and detailed using an industrialised construction method,” says Rick Leusink, project manager at Van Wijnen. “Both the structural shell and the façades were designed as prefabricated elements. This innovative, scaffold-free approach has enabled a rapid pace of construction. We were able to complete one storey every week. The towers were also made wind- and watertight quickly, allowing us to start the fit-out sooner. The total construction time has been reduced by more than 40% compared with traditional construction using in-situ concrete and brickwork from scaffolding.” The concrete for the cycle storey and ground floor was cast in situ, however, to transfer structural loads to the piles.

The roof consists of a separate steel structure with individual prefabricated piers and steel frames.

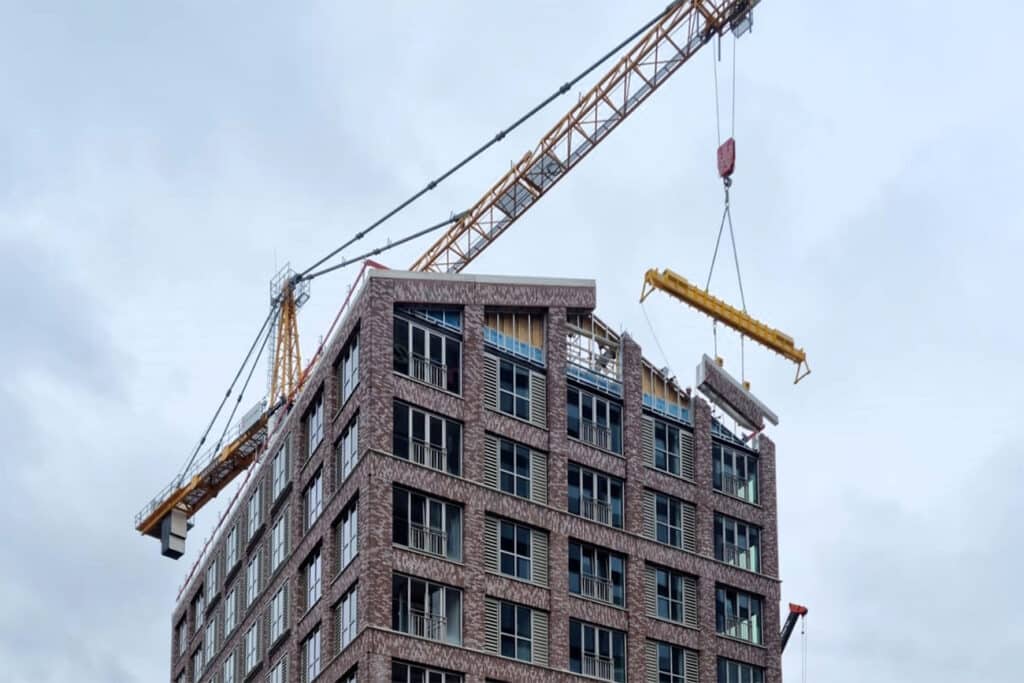

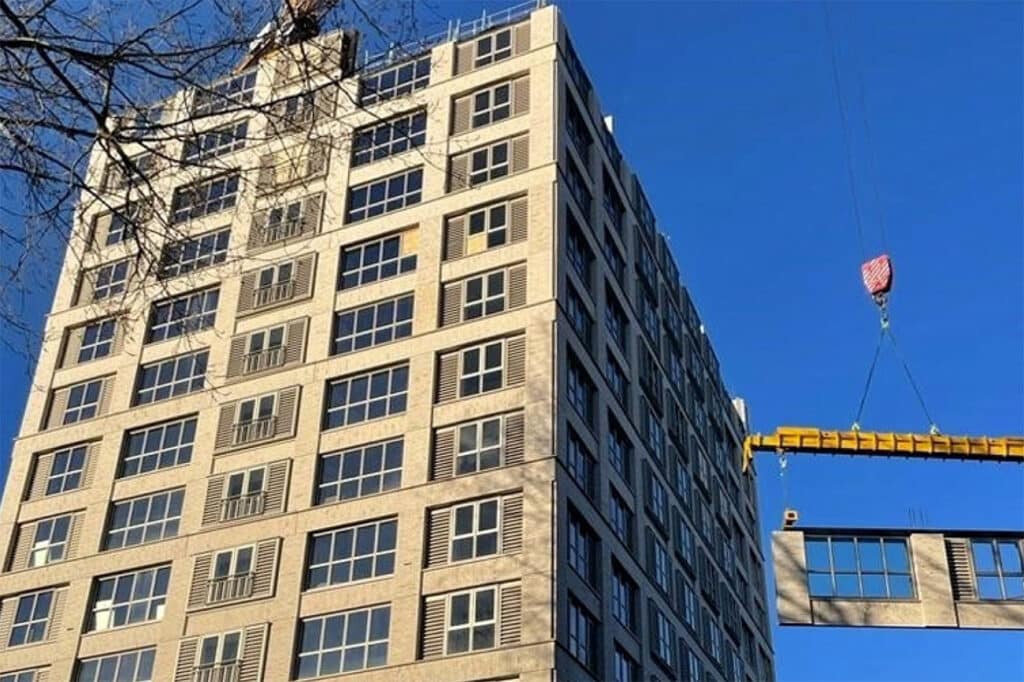

The towers are built from prefabricated façade elements.

Just in time

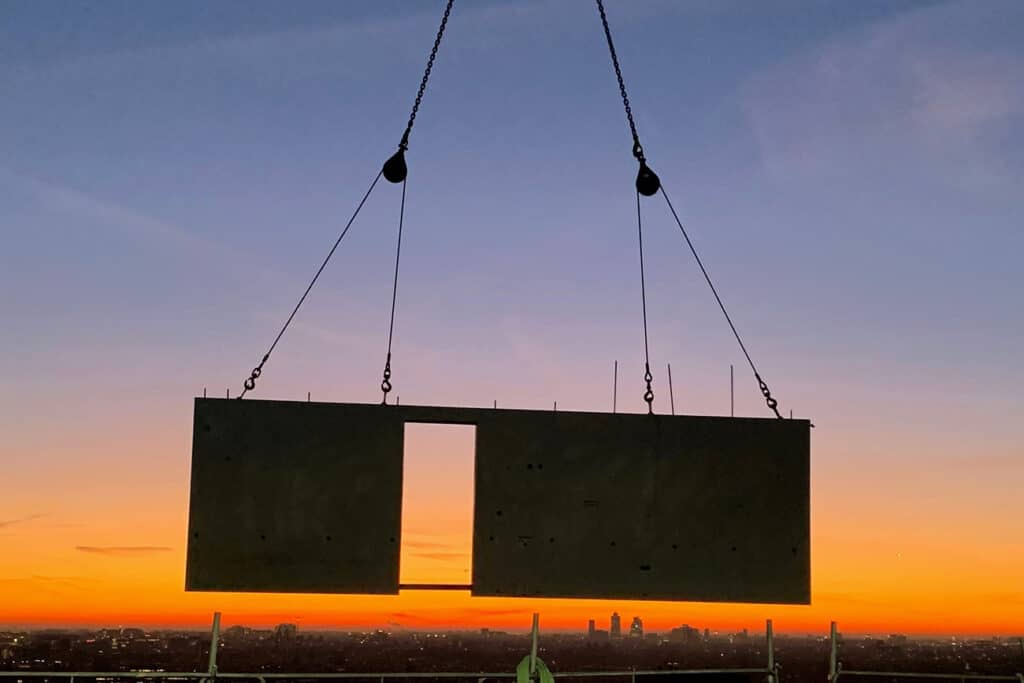

The façade elements, some of which are load-bearing, were prefabricated and assembled at Loveld, a Belgian façade contractor. “The façade elements had already been fitted with frames and glazing by other contractors,” says Remco Kooiman, senior project planner at Van Wijnen. “They were brought to the site in Amsterdam just in time and hoisted straight into position, partly because the site is very restricted.” The structural walls and floors were supplied by MBS Cascobouw. The roof consists of a separate steel structure with individual prefabricated piers and steel frames fitted with solar panels.

“For a fast construction process, it is important that the utility services are also installed on time,” says site manager Ralph Esschendal. “Unfortunately, we sometimes see this handled differently, but here good arrangements were made in advance and honoured. Good arrangements were also made with the adjacent city monastery. It lies within the construction safety zone and had to be partially evacuated while the façade elements were being hoisted.” To achieve the desired high construction speed, a longer preparation period is needed than for traditional construction, Leusink explains. “You have to bring together input from all the partners involved in a design that can be built. That means coordinating, modelling and then producing. With that approach, a schedule of one storey per week is achievable.”

A business enquiry for MBS Groep? Get in touch

Who worked on Caritas en Fortitudo

  1. mechanical installationsBremanMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  2. developmentMaarssen GroepMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  3. architectGeurst & Schulze ArchitectenMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  4. constructionVan Wijnen AmsterdamMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  5. drinking water supplyWaternetMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  6. district heating networkVattenfallMentioned in Caritas and Fortitudo address Amsterdam’s housing needs
  7. precast concrete elementsMBSMentioned in Build slender, fast and sustainably with precast concrete elements
  8. structural engineerSnijders IngenieursgroepMentioned in Build slender, fast and sustainably with precast concrete elements
  9. ClientMaarsen GroepIn this story
  10. ClientInvesco Real EstateIn this story
  11. constructionVan WijnenIn this story
  12. Structural engineerIMD Raadgevende IngenieursIn this story
  13. Façade elementsLoveldIn this story
